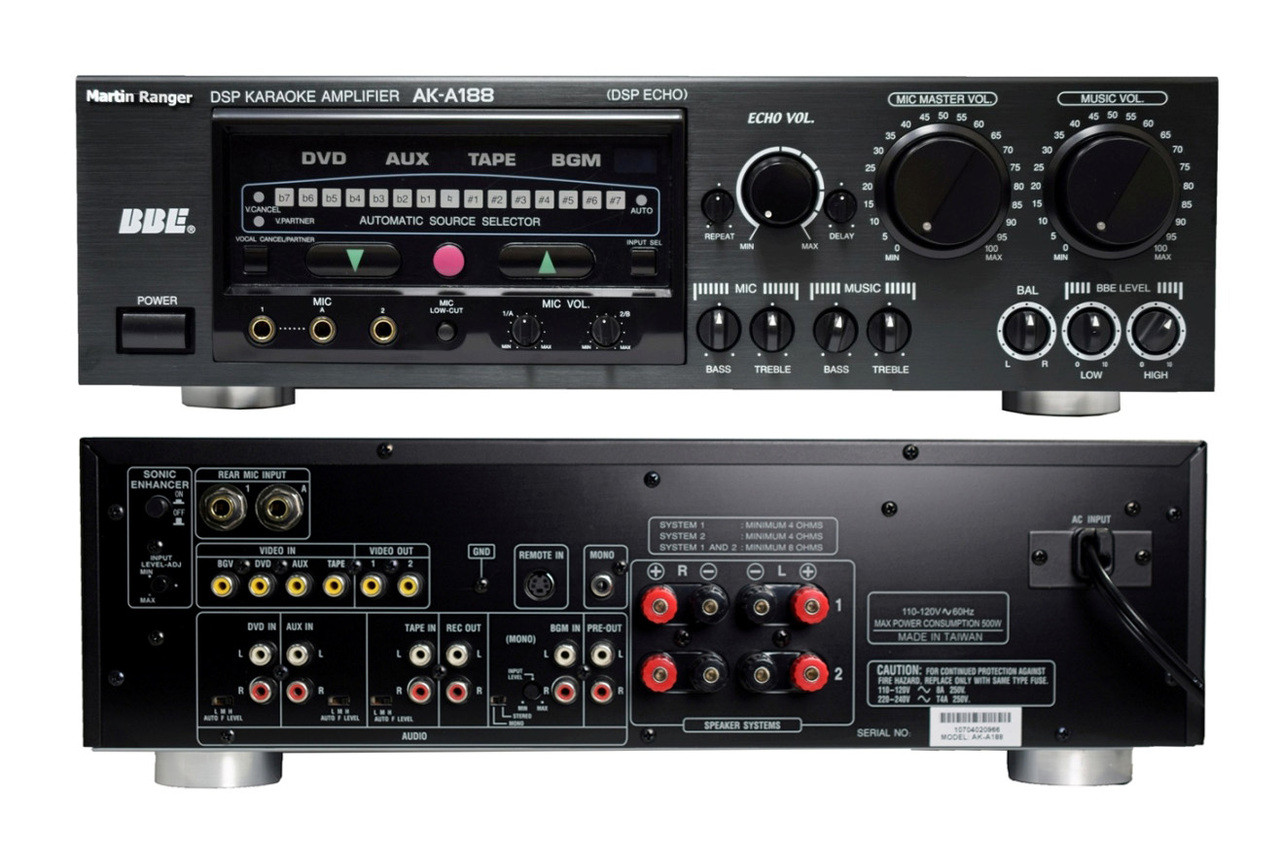

Martin Ranger AK-A188 Karaoke Mixing Amplifier BBE

  • Image 1
36.00 LBS
Free Shipping

Product Description

Martin Raner AK-A188
500W DSP Echo AV with BBE Engine Processor Amplifier


The AK-A188 is one of the most advanced mixing amplifiers One of the most useful features is the automatic source selector. The AK-A188 will detect which ever audio source is on and automatically select it so you don't have to guess when choosing from one of the four inputs. You will not have any silence as long as you have music playing through the background music (BGM) sound input even when you pause, or change discs on your DVD player. The party won't stop if the music doesn't! You'll have full control as the BGM feature has an input level controller on the back panel so you can adjust volume levels appropriately. To help better control this feature, sensitivity switches are used for the DVD, TAPE, and AUX inputs so you can set the sensitivity at which the audio source will detect and switch to the right source automatically.

The best feature yet is the incorporation of BBE Technology. BBE is a sound enhancement technology that is described by electronics manufacturers as the next leap forward in sound reproduction technology and is very popular among music and sound professionals. BBE will improve sound from as simple as a spoken word, to singing, to a full symphony and deliver it with clarity and liveliness. You will have to hear it to believe it.


The AK-A188 can push out 500 watts of power at 4 ohms and can be set up in 3 different speaker configurations. The back speaker terminals are labeled System 1 and 2 and can drive speakers no lower than 4 ohms when only one system is used at a time. You can drive speakers no lower than 8 ohms when using both systems together. The terminals are designed to be used with bare speaker wire as well as banana connectors. A subwoofer output is also built in along with a subwoofer frequency control so you can send an audio signal to a powered subwoofer or to an amplifier. This is more power and configurations than you'll probably ever need to use but are conveniently available!


Singers will be just as happy since there are many features at their disposal as well. One of the most important is the Hi-Cut and Low-Cut features. This will help eliminate low and high frequency microphone feedback such as hissing and breathing. If you're a singer, you know this can hurt your performance and most systems cannot overcome this problem but now there is a way to deal with it. There are a total of 5 microphone inputs (3 front, 2 rear) with volume controls for the front microphones. You won't have to fight for a microphone anymore at the next party. This AK-A188  adopts YAMAHA DSP Advanced Stereo Key Controller Chipset users can change the key of their music 15-steps for a total of 4.5 whole notes, so no more missing out on songs that aren't in your natural vocal range! It has all the necessary acoustic features sought by karaoke jockeys.




Maximum Power 500W+500W

Output Power output 150W + 150W (8ohms)

Adopt Yamaha DSP High-End 3D Key Controller Chip

15 step key controller ±2.5 tones

On-Screen Display for Advanced Setting

Built-in high quality stereo digital echo

Built-in BBE sound enhancement technology

Five Microphone Inputs( 3 Front & 2 Rear)

Four Pairs of Banana Speaker Terminals(2 Left+2 Right)

Dynamic range expander

Large keypad Infrared remote controller

Subwoofer output with subwoofer volume control

Vocal Cancel (up to 90% of music) and Vocal Partner Function

Echo Repeat, Echo Delay

1 Year Manufacturer Warranty

Made in Taiwan



4 Audio and Vedio Inputs with automatic source selector capability

2 Video Outputs

3 Microphones available simultaneously

1 Audio Pre-out Terminal

1 Recording output terminal for recorder component

1 Remote Input for remote extender

1 Background Video Input (BGV) Jack

1 Background Music Input (BGM) Jack

Background Music Input with Level Control and Mono/Stereo Switch

Audio Input sensitivity switch





Audio output power   500W+500W(8Ω)

Total harmonic distortion(1KHz,-3dB,8Ω)    0.05%

Audio input(sensitivity/impedance)

         MIC    1mV/3.5KΩ

         DVD, AUX, TAPE    260mV/22KΩ

         BGM   260mV/22KΩ

Audio output (Level/impedance)


PRE-OUT       2.5V/1KΩ

Audio REC output (Level/impedance)


REC-OUT       250mV/470Ω

Frequency response


MIC    20Hz~20KHz,-0.5/-2dB

Music  20Hz~40KHz,0/-1dB

Tone control response


Music Tone     Bass     ±10dB(100Hz)

         Treble  ±10dB(10KHz)

Mic Tone         Bass     ±10dB(100Hz)

         Treble  ±10dB(10KHz)

Enhancer Control        Low     +8dB(100Hz)

         High    +9dB(10KHz)

Speaker Terminal Output

         1 System only 1 & 2   4 Ω ~ 16 Ω

         2 Sys Operation 1 &2 8 Ω ~ 16 Ω

Key control range       15 steps ± 2.5 tones

Video Input (Sensitivity/Input impedance)    1 Vp-p / 75 Ω

Video Output (Output level/Impedance)       1 Vp-p / 75 Ω


Package Includes:

Wireless Remote Control Unit(RC-8-2)

Power supply Cord

User's Menu
