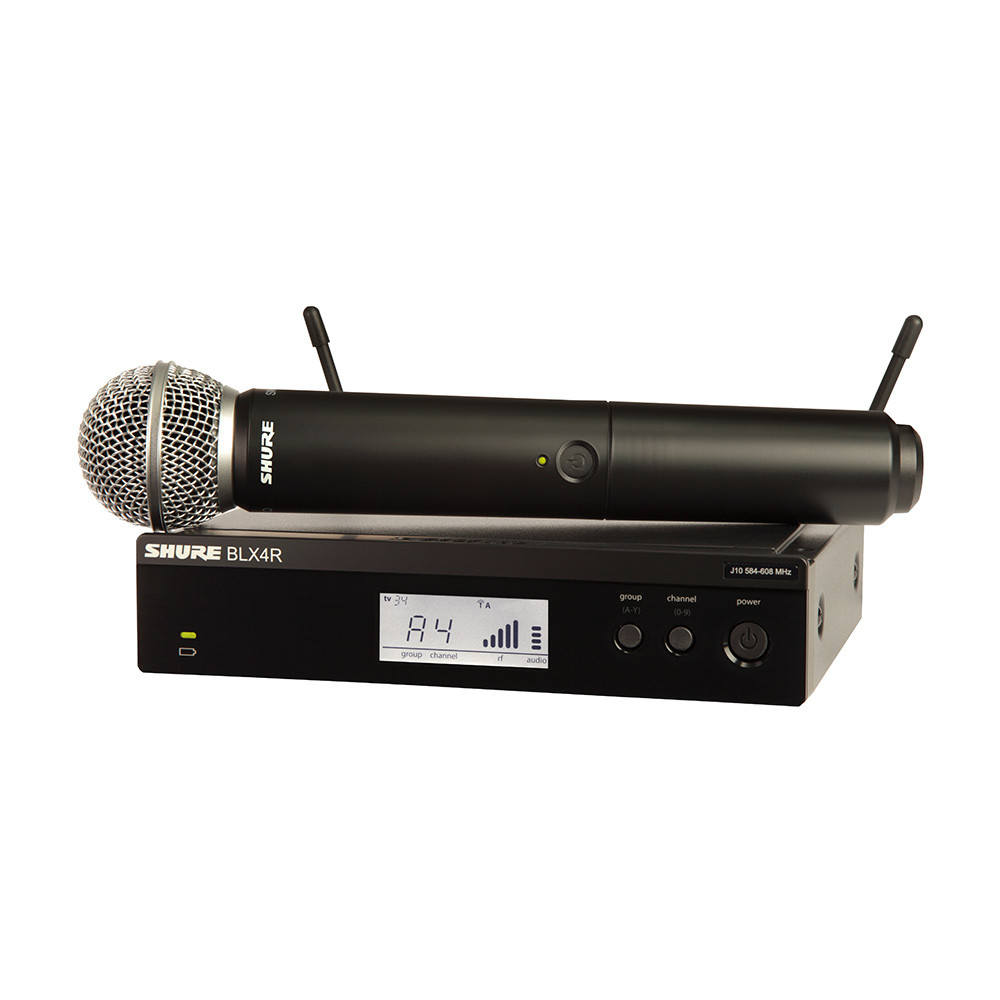

Shure BLX24R/SM58 Handheld Wireless System (with SM58)

Includes: BLX4R Diversity Receiver and BLX2 Handheld Transmitter with SM58 Microphone.

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it’s the most accessible way to own the stage.

BLX4R Diversity Receiver

Up to 12 compatible systems per frequency band (region dependent)

Microprocessor-controlled internal antenna diversity

One-touch Quickscan frequency selection quickly locates the best frequency

1/4” and XLR audio outputs

Two color audio status indicator LED

Adjustable output level

Removable antennas for quick antenna distribution

LCD display with detailed RF and audio metering

Rugged metal construction, rack mount hardware included

Wireless Transmitters

Power and battery status LED

Adjustable gain control

Quick & easy frequency matching

2 AA batteries (included) provide up to 14 hours of continuous use

300 feet (91 m) operating range (line of sight)

SM58 Cardioid Dynamic Microphone

Industry-standard microphone capsule tailored to deliver warm, clear vocal reproduction.

Specifications

Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal     absorption, reflection and interference)

Available Frequencies   :

Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)

Audio Range: 50–15,000 Hz (dependent on microphone type)

Transmitter RF Output Power: 10 mW, typical (varies by region)

Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced

Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")

Battery Life: Up to 14 hours

Dynamic Range: 100 dB A-weighted

System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)

Operating Temperature Range: -18°C (0°F) – +50°C (122°F)

Power Requirements:

BLX1, BLX2: 2 AA alkaline or rechargeable batteries

BLX4: 12–18 V DC at 150 mA, supplied by external power supply

BLX88: 12–18 V DC at 320 mA, supplied by external power supply

BLX4R: 12–18 V DC at 260 mA, supplied by external power supply
