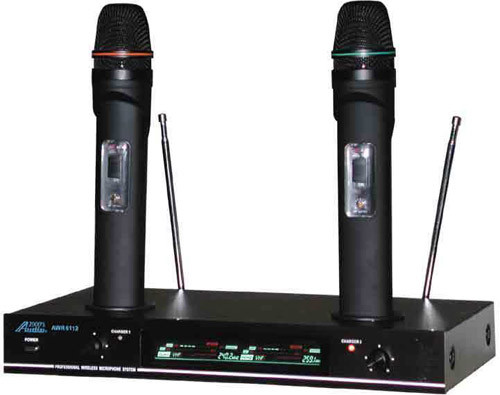

The Audio2000'S AWM6112 Plug-In-N-Recharge VHF dual channel wireless microphone system is a wireless microphone system with the recharge mechanism right on the top of the receiver (AWR6112) and on the microphone (AWX6112). Intended to be a solution provider for various application environment. The Plug-In-N-Recharge feature, with the recharge mechanism built right on the microphone and the receiver, makes the wireless microphone systems ready to be used at any time. A rack-mount kit is included such that the AWM6112 is rack mountable.

Package Included:
AWR6112 Receiver
Two AWX6112 Microphone
AWR6112 Receiver:

FEATURES:
VHF Band Frequency
Recharge Mechanism Built-in on the Receiver
Balanced and Unbalanced Audio Outputs
Full Rack Case with Power and RF Indicators
Fluorescence Display
RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
Low Noise Mixer Circuitry for Reducing interference
120V-240V AC Power Supply

FRONT PANEL FUNCTIONS
1. Power On/Off Switch
2. Channel 1 Volume Level Control
3. Channel 1 Recharge LED Indicator
4. Fluorescence Display
5. Channel 2 Volume Level Control
6. Channel 2 Recharge LED Indicator

REAR PANEL FUNCTIONS
1. Channel 2 Antenna
2. Unbalanced Mixed Audio Output (1/4・Jack)
3. Balanced Mixed Audio Output (XLRM Jack)
4. Channel 1 Antenna
5. AC Power Cord
6. 120V / 240V Voltage Selection Switch

SPECIFICATIONS:
Carrier Frequency Range: VHF Band
Frequency Stability: 0.005%
Receiving Sensitivity: 97 dBm
S/N Ratio: 70dB
T.H.D.: < 1%
Audio Output: .25inch and XLR (0 - 500mV @ 4.7Kohms)
Dimensions (W X H X D): 12.8 X 2.1 X 7.9 inch (326 X 53 X 200 mm)
AWX6112 Transmitter:

FEATURES:
VHF Band Frequency
Recharge Mechanism at the Base of the Handheld Microphone
High Sensitivity Cardioid Microphone Capsule
Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
Low Battery LED Indicator
SPECIFICATIONS

Carrier Frequency Range: VHF Band
Frequency Stability: 0.005%
Modulation: Frequency Modulation (FM)
Modulation Depth: 30KHz
Output Power: 30mW, Max
Harmonic Suppression: 40dB
Battery : AA Batteries X 3 (1.5V X 3)
Current Consumption: 85 mA
System Specifications

Carrier Frequency Range: VHF Band
Frequency Stability: 0.005%
Audio Frequency Response: 80 - 15,000Hz
Image and Spurious Rejection: 45dB Minimum
S/N Ratio: > 75dB
Max. SPL: >100dB
T.H.D.: < 1%
Service Area: 100 ft (30 M)
Operation Temperature: -10 C to +50 C
