Audio Technica ATW602 Handheld Microphone System

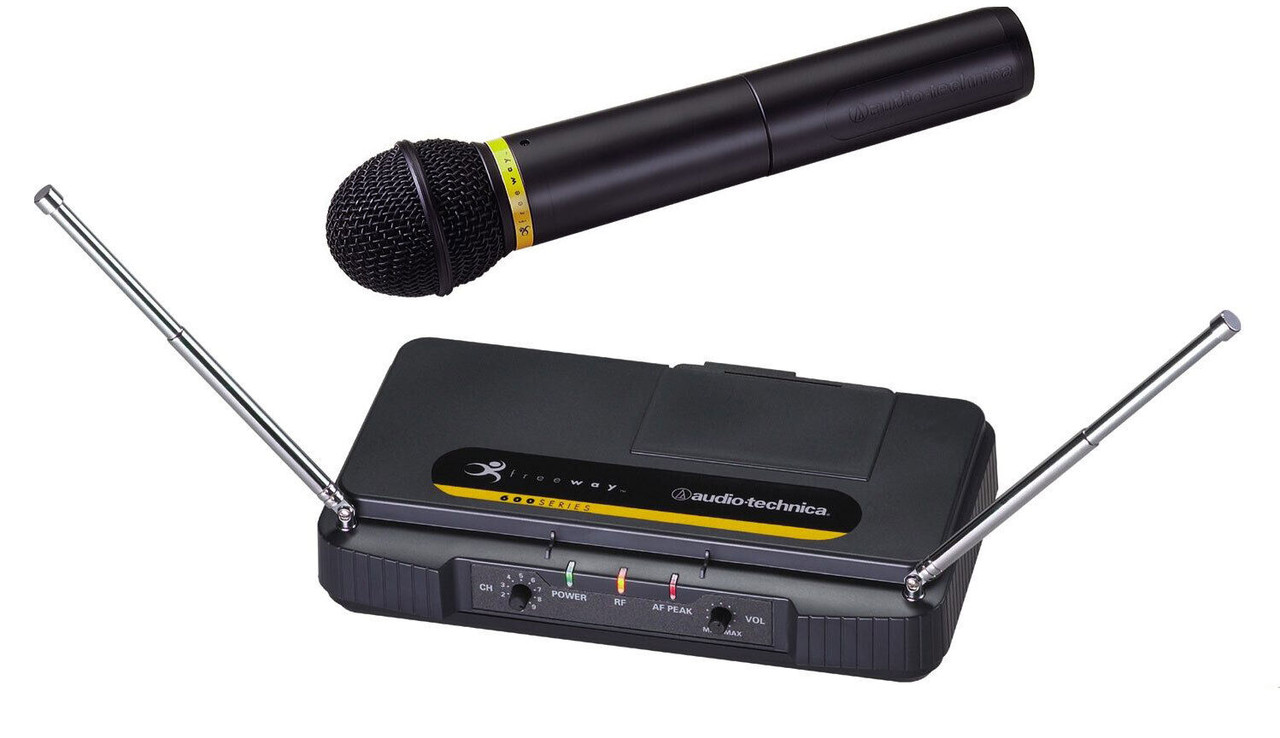

ATW-R600 Receiver and ATW-T602 Handheld Unidirectional Microphone/Transmitter

AudioTechnica has broken the price barrier for exceptional audio quality and switchable-frequency UHF wireless. The new Freeway systems feature 10 selectable UHF channels and an advanced dipole antenna design. Each Freeway system includes the ATW-R600 receiver and either a body-pack transmitter or a handheld mic/transmitter. The receiver includes squelch and volume controls, along with AF Peak, RF and Power indicator lights. The body-pack transmitter features a professional locking connector and a dual-impedance input for instruments and mics. Just add your choice of headset or lapel mics, or a guitar cable (Wireless Essentials). The handheld system includes the ATW-T602 dynamic mic/transmitter. Both the handheld and body-pack transmitters operate on a single 9-volt battery, and feature a battery-condition indicator light, a 3-position Off/Standby/On switch, an internal channel selector and a variable trim control.

System Includes: ATW-R600 Receiver and ATW-T602 Handheld Unidirectional Microphone/Transmitter.

Features
Frequency-agile with 10 selectable UHF channels
Available in two frequency bands:
Band A: 470 - 480 MHz (TV channels 14 - 15)
Band B: 482 - 492 MHz (TV channels 16 - 17)

Advanced dipole antenna system
Adjustable squelch control
Removable docking power supply inserts into back of receiver
ATW-T601 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups

ATW-T602 handheld microphone/transmitter features a dynamic unidirectional element with superior internal shock mounting

System Includes: ATW-R600 Receiver and ATW-T602 Handheld Unidirectional Microphone/Transmitter.

Overall System

Operating Frequency UHF band:
Band A: 470.000 MHz to 479.750 MHz
Band B: 482.000 MHz to 491.750 MHz
Number of channels: 10
Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Maximum Deviation: +/-15 kHz
Operating Range: 150 ft. minimum
Operating Temperature Range: 40 F (4 C) to 110 F (43 C)
Frequency Response:
ATW-601: 50 Hz to 16 kHz
ATW-602: 100 Hz to 13 kHz

ATW-R600 Receiver

Receiving System: Non-diversity, 10 channel synthesized, dual antenna system
Image Rejection: 50 dB minimum
Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 25 uV for 60 dB S/N (IEC-weighted)
Audio Output: 350 mV (at 1 kHz, 10 kHz deviation, 100k ohm load)
Output Connector: 1/4 in. phone jack
Power Supply: 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply
Dimensions: 8.27 in. (210.0 mm) W x 1.72 in. (43.5 mm) H x 4.73 in. (120.0 mm) D
Net Weight: 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams)
Accessories Included: AD1202A 120V docking AC adapter; 120V AC IEC cordset

ATW-T602 Handheld Transmitter

RF Power Output 10 mW nominal, 5 mW typical
Spurious Emissions Under federal regulations
Dynamic Range >=90 dB, A-weighted
Microphone Element Dynamic unidirectional
Battery (not included) 9V (NEDA type 1604) alkaline
Current Consumption 60 mA typical
Battery Life 4-5 hours
Dimensions 9.65 in. (245.0 mm) long, 2.11 in. (53.5 mm) diameter
Net Weight (without battery) 11.2 oz (316 grams)
Accessory Included AT8456a stand clamp

*Except for operating frequencies, specifications for "A" and "B" units are identical.
