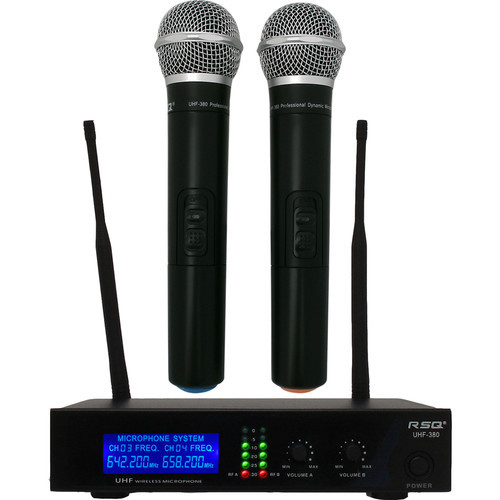

RSQ UHF-380 Dual Wireless Microphone

The UHF-380 2-Channel Fixed Frequency Receiver with Handheld Microphone from RSQ allows for operation of two included handheld microphone transmitters, making it ideal for vocals, karaoke, and PA applications. Its fixed UHF frequency offers stable and interference-free operation. The receiver has a durable metal construction, the neodymium magnet provides high output level, and the internal shock mount reduces handling noise. Each transmitter operates on AA battery.

for vocal, karaoke and PA.

Neodymium magnet for high output level.

Internal shock mount for reduced handling noise.

Durable metal construction receiver.

On/off switch for onstage control.

Half-rack dual UHF wireless receiver.

Two independent balanced XLR outputs or one unbalanced 1/4-inch mix output.

Two Independent level controls.

Each transmitter operates AA battery.

Multi-segment RF level and peak audio indicators for each channel.

UHF-380 R: Dual Channel Receiver

Oscillation Mode: Quartz Controlled Fixed Frequency

Modulation: Wideband FM

Frequency Range: 614MHz - 698MHz

Working Range: 20m (65 ft.) typically; 150m (500ft.)

Max Deviation: 50 KHz

S/N Ratio≥ 105 dB

Sensitivity2uV@sinad=12dB

T.H.D≤ 0.5% @ 1 KHz

Image Rejection 85 dB Typical

Spurious Rejection 75 dB Typical

Frequency Response: 60 Hz - 16 KHz

Squelch Control: Duel Squelch Circuit

Audio Output Voltage

Balanced (XLR Port) : 0-400 mV  (2EA)

Mixed ( ¼” Port) : 0-300 mV (1EA)

Working  Voltage: DC 12-15 V

Working  Current ≤ 450mA

UHF-380 T Handheld Transmitter Transmitter Power

30mW ( Depend on applicable country regulations)

Mic Capsule: Dynamic

Stability: Spurious Emission< 30 mW <  40 dB (with Carrier)

Battery: AA x 2

Frequency Response: 60Hz ~ 16 KHz
