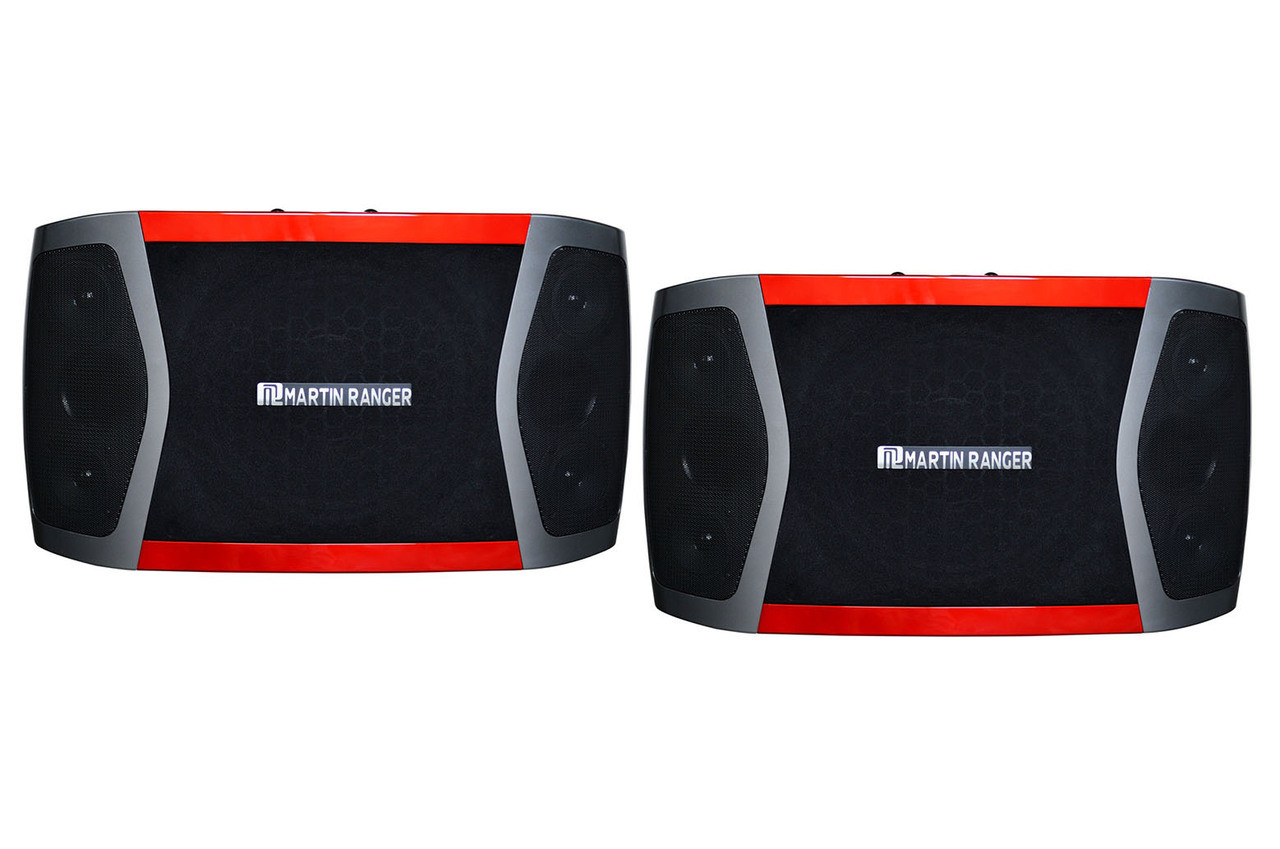

FEATURES   3-Way HiFi stereo 3-way design

• 2.5” x 2 tweeters [paper cone high frequency drivers]

• 3” x 4 mid-tweeters [paper cone middle frequency drivers]

• 12” x 1 woofer [low frequency woofer]

• High output SPL and sensitivity

• Copper wired voice coil

• Gold-plated copper terminals

• Frequency response 36Hz~18kHz

• Sensitivity 94dB

• Configuration Space magnetic Y-35 performance magnet

• Double backward hole

• Flexible and easy-to install configurations

 Specification:

• Type: Bass reflex system(3-Way Full Range)

• Max. Power Handling: 1000 Watts / Pair

• Cabinet Type: Precision Wood

• Supported Fixture: Ceiling, Wall Mount, Floor Stand

• Woofer: 12 inches x 1

• Tweeter: 2.5 inches (High Frequency) x2

• Mid-Tweeter: 3.5 inches (Middle Frequency) x 4

• Rated Impedance: 8 ohms

• Frequency Response: 36Hz ~ 18kHz ( ± 3 dB)

• Sensitivity: 94 dB/1W/1M

• Crossover Frequency: LF: 300Hz / HF: 6.3kHz

• Dimension (WxHxD): 24.33x 13.8 x 12.8 in (each)

• Packing Dimension (WxHxD): 30 x 26x 18 in (pair)

• Net Weight: 30 Lbs(each)

• Shipping Weight: 64 Lbs (pair)
