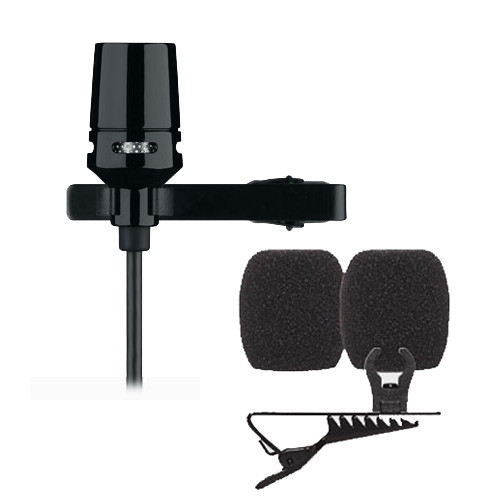

Clip-on lavalier condenser microphone in a discreet, miniature form factor ideal for professional presentations. Works with Shure wireless systems. Discreet, miniature clip-on lavalier microphone for speeches and presentations. Condenser cartridge with cardioid polar pattern. Works with all Shure wireless bodypacks featuring TA4F (TQG) connectors

For professional presentations requiring a microphone that is heard but not seen, the Centraverse™ CVL Lavalier Condenser Microphone offers a compact clip-on design and simple, no-nonsense setup.

The unidirectional cardioid polar pattern rejects unwanted sound for superior audio quality and vocal reproduction. Precision-engineered for years of use with all Shure wireless systems.

Features:

Miniature lavalier microphone with included tie clip offers low visibility and hands-free use

Permanently charged electret condenser element provides clear vocal reproduction

Unidirectional cardioid polar pattern rejects unwanted noise for improved sound quality

Included windscreen reduces plosives, wind, and breath sounds

Tailored frequency response optimized for speaking and presentations

TA4F (TQG) connector seamlessly integrates with Shure wireless systems

Legendary Shure precision engineering for durability and performance

Specifications:

Type: Electret Condenser

Frequency Response: 50–20,000 Hz

Polar Pattern: Cardioid

Accessories:

Replacement kit with clip and 2 foam windscreens for CVL lavalier microphone.

Technical Specs:

• Type: Electret Condenser
• Frequency Response: 60-20,000Hz
• Polar Pattern: Cardioid
• Compatibility:
• Compatible with all Shure wireless body packs
• Other brand body packs will require the same pin-out wiring, if not, it will not be compatible.

• Pin-out wiring for Shure
• Pin 1: Shield
• Pin 2: Bias (+5Vdc)
• Pin 3: Audio
• Pin 4: Bias return - 20 k Ohm resistor to ground or equivalent active bias management circuit (jumpered to pin 3 when used with most condenser microphones)
