Today, people who sing karaoke require different channels, so that the music and their vocal singing can be heard separately from different speakers by using additional center speakers and subwoofers. The multiple speakers, which give high, mid and low frequencies, can produce very amazing sound effects.

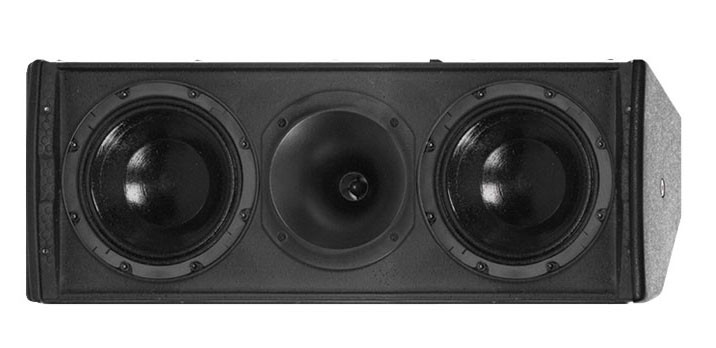

Unfortunately, home theater system is not designed to support professional karaoke singing, so it usually ends up burning the pricey speakers. Now Better Music Builder solves this problem by introducing a new line of speaker for karaoke. First of all, the center speaker DFS-306 is designed for independent vocal output. Therefore, people can get the same effect of a home theater system for karaoke.

Even though the DFS -306 is designed in compact size, it is a very powerful speaker. It is great for the people who require additional speaker effects for equipment rental, or multiple speaker installation for commercial use. The cabinet design enables the speaker for vertical and horizontal mounting on ceiling, wall, stage, or floor stands. There are many ways for you to install your DFS -306 for different use.

The recommended setting for this speaker is to use the new DX-213 3-channel mixing amplifier or the new DX-288 5-channel m

FEATURES

Driver:

• 6 inch woofer (2 full-range woofer)
• 1 inch horn (1 compression driver)
• Copper wired voice coil
• Single magnet (woofer & horn)

Cabinet:

• Color: Black
• Black Paint (orange skin type) layer, MDF (medium density fiberboard)
• 2-way full-range design
• Horn on center, woofer on top and bottom of horn
• Mountable screws (8mm Alan screw) top and bottom of cabinet
• Versatile mountable on ceiling/wall/floor
• Versatile brackets included in package
• Wire inputs located on rear of cabinet (speakon type)

TECH SPECS

• Recommended Usage: Center vocal/monitor speaker
• Type: 2-Way full-range (floor-stand or wall/ceiling mounted)
• Woofers: Double 6 inches (aluminum alloy cone)
• High Frequency: Single 1 inch compression driver with PEI diaphragm
• Single Bass Reflex
• Single Bass Reflex
• Single Speakon Input
• Frequency Response: 70 Hz~ 18 kHz
• Sensitivity: 93 db
• Input Power Maximum: 60 ~ 320 Watts
• Crossover Frequencies: 3 kHz
• Nominal Impedance: 8 ohm
• UPC Code: 743062980322
• Unit Dimensions (W x H x D): 8.4 inches x 21.3 inches x 7.6 inches
• Unit Weight: 22 lbs / 10 kg (each)
• Package Dimensions (single unit per box): 25 inches x 12 inches x 12.5 inches
• Shipping Weight: 27 lbs / 12.3 kg (single unit per box)
