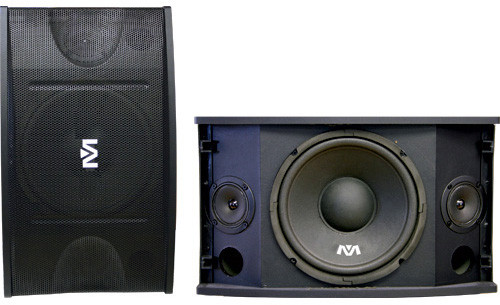

CS-500V speaker from Better Music Builder is an upgraded design of CS-450. With a new crossover design, it allows an enhanced high frequency for clearer vocal sound. CS-500V is designed for 3-channel karaoke. It is in good combination with CS-306 as a center vocal speaker, so CS-500V is used as a main speaker. It also combines with the DX-213 new karaoke mixing amplifier, allowing the vocal and music to come from the center and main speaker respectively. It is a new dynamic setting for karaoke.

FEATURES

Driver:

• 10 inch woofer (1 full-range woofer)
• 3 inch tweeter (2 tweeters)
• Copper wired voice coil
• Double magnet (woofer & tweeter)

Cabinet:

• Color: Black
• PVC layer, plywood
• 2-way full-range design
• Front Grill: adjustable 180 degrees
• Woofer in middle, tweeters on left and right of woofer
• Mountable screws (8mm Alan screw) top of cabinet (allow for wall/ceiling mounting)
• Mountable screws (8mm Alan screw) bottom of cabinet (allow mounts on floor-stand)
• Wire inputs located on rear of cabinet (double banana type)

TECH SPECS

• Recommended Usage: Main speaker (maximum 500 sq ft.)
• Type: 2-Way full-range (floor-stand or wall/ceiling mounted)
• Woofers: Single 10 inches
• Tweeters: Dual 3 inches
• Single Bass Reflex
• Gold-Plated Brass Inputs (double MDP Banana Premium type)
• Frequency Response: 40 Hz~ 20 kHz
• Sensitivity: 90 db
• Input Power Maximum: 450 Watts
• Crossover Frequencies: 2 kHz
• Nominal Impedance: 8 ohm
• UPC Code: 743062980193
• Dimensions (WxHxD): 19.8 x 11.5 x 11 inches
• Packing Dimensions (WxHxD): 26 x 23 x 14.5 inches (pair)
• Net Weight: 22.6 Lbs / 10.3 Kg (each)
• Shipping Weight: 50.8 Lbs / 23 Kg (pair)
